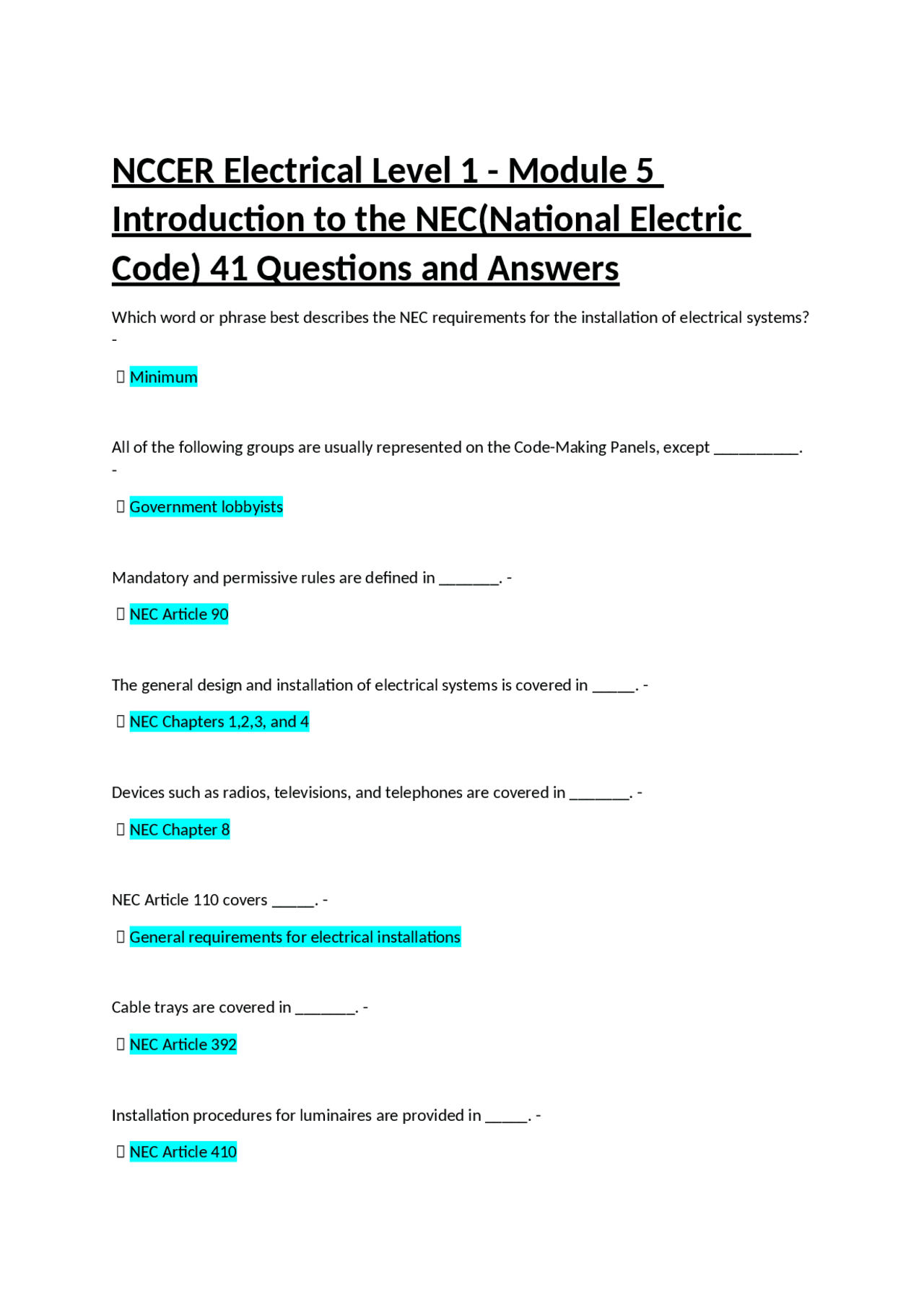

NCCER Electrical Level 1 - Module 5
Introduction to the NEC(National Electric
Code) 41 Questions and Answers
Which word or phrase best describes the NEC requirements for the installation of electrical systems?
-
Minimum
All of the following groups are usually represented on the Code-Making Panels, except __________.
-
Government lobbyists
Mandatory and permissive rules are defined in _______. -
NEC Article 90
The general design and installation of electrical systems is covered in _____. -
NEC Chapters 1,2,3, and 4
Devices such as radios, televisions, and telephones are covered in _______. -
NEC Chapter 8
NEC Article 110 covers _____. -
General requirements for electrical installations
Cable trays are covered in _______. -
NEC Article 392
Installation procedures for luminaires are provided in _____. -
NEC Article 410
pf3
pf4
pf5

Partial preview of the text

Download NCCER Electrical Level 1 - Module 5: Introduction to the NEC (National Electric Code) and more Exams Electrical and Electronics Engineering in PDF only on Docsity!

NCCER Electrical Level 1 - Module 5

Introduction to the NEC(National Electric

Code) 41 Questions and Answers

Which word or phrase best describes the NEC requirements for the installation of electrical systems?

  • ✅ Minimum All of the following groups are usually represented on the Code-Making Panels, except __________.
  • ✅ Government lobbyists Mandatory and permissive rules are defined in _______. - ✅ NEC Article 90 The general design and installation of electrical systems is covered in _____. - ✅ NEC Chapters 1,2,3, and 4 Devices such as radios, televisions, and telephones are covered in _______. - ✅ NEC Chapter 8 NEC Article 110 covers _____. - ✅ General requirements for electrical installations Cable trays are covered in _______. - ✅ NEC Article 392 Installation procedures for luminaires are provided in _____. - ✅ NEC Article 410

Theaters are covered in _______. - ✅ NEC article 520 NEC article 600 covers _______. - ✅ Electric Signs and Outline Lighting Examples of branch circuit calculations can be found in _______. - ✅ NEC Informative Annex D Information on conductors for general wiring can be found in ______. - ✅ NEC Article 310 Within NEC Article 310, locate information on stranded conductors. Which size conductors must be stranded when installed in raceways? - ✅ 8 AWG or larger Information on switchboards and panelboards can be found in _____. - ✅ NEC Article 408 Within NEC Article 408, find the section that covers switchboard clearances. Assuming the switchboard does not have a noncombustible shield, what is the minimum clearance between the top of the switchboard and a combustible ceiling? - ✅ 36" (900 mm) ______ are the main topics of the NEC. - ✅ Articles Nine _______ form the broad structure of the NEC. - ✅ Chapters

The NEC is made up of ______ chapters. - ✅ 9 The NEC provides the ______ requirements for the installation of electrical systems. - ✅ minimum NEC Chapter 2 covers ______. - ✅ Wiring and Protection Which of the following covers electric motors? - ✅ NEC Article 430 NEC Article 520 covers _______ and similar occupancies where fire and panic can cause hazards to life and property - ✅ theaters To size grounding conductors, refer to _______. - ✅ NEC Chapter 2 Wiring methods are covered in _______. - ✅ NEC Chapter 3 Gas stations are covered in _______. - ✅ NEC Chapter 5 Emergency systems are covered in _______. - ✅ NEC Chapter 7 Fire alarm systems are covered in _______. - ✅ NEC Chapter 7

Definitions are covered in ______. - ✅ Article 100 Units of measurement are covered in ______. - ✅ Article 90 X-ray equipment is covered in ______. - ✅ NEC Article 660 ______ contains tables referenced by other chapters. - ✅ NEC Chapter 9 Electric signs are covered in _______. - ✅ NEC Chapter 6
