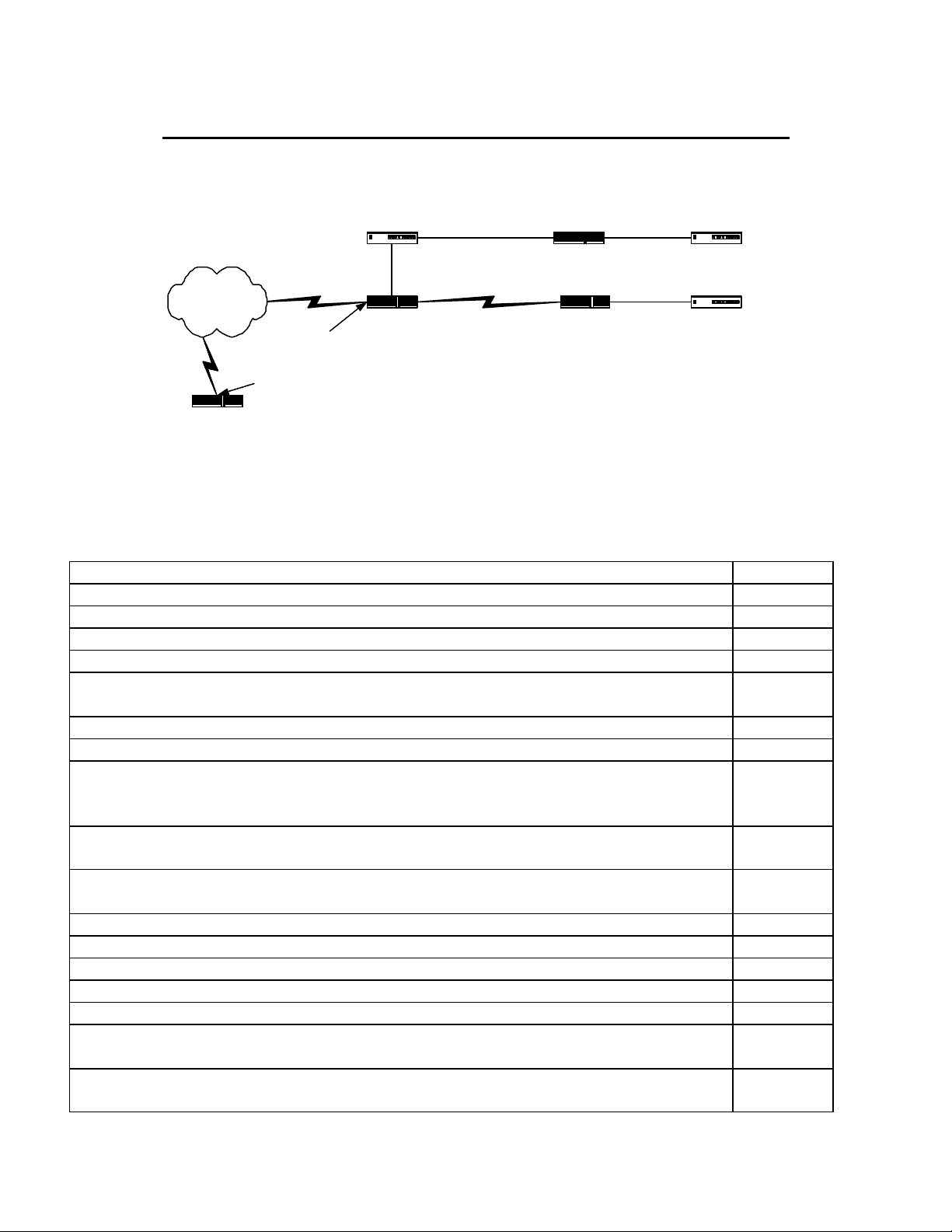

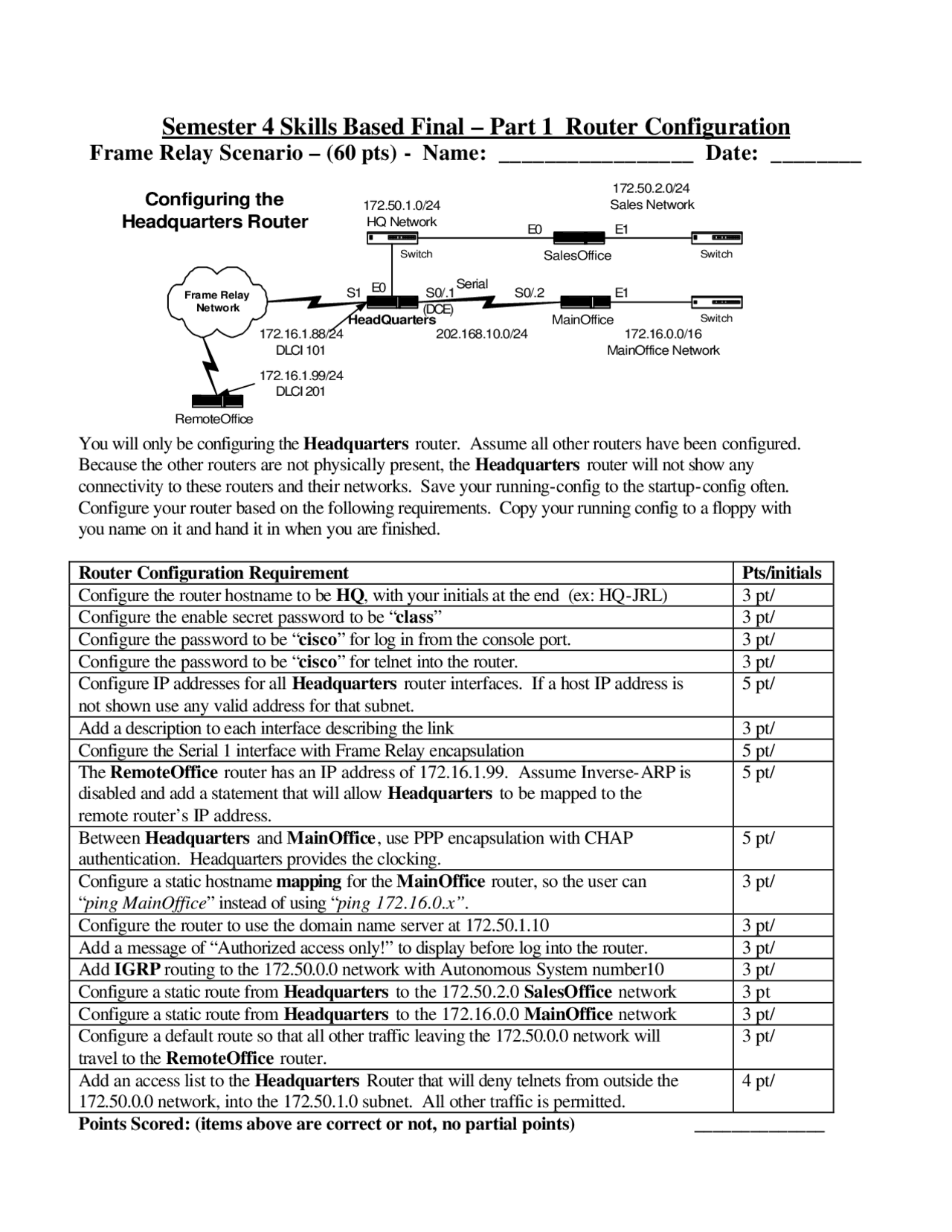

Semester 4 Skills Based Final – Part 1 Router Configuration
Frame Relay Scenario – (60 pts) - Name: _________________ Date: ________
HeadQuarters
MainOffice
Serial
202.168.10.0/24
172.50.1.0/24
HQ Network
S0/.1
(DCE) S0/.2
E0
S1
Frame Relay
Network
RemoteOffice
172.16.1.99/24
DLCI 201
172.16.1.88/24
DLCI 101
Configuring the
Headquarters Router
SalesOffice
E0 E1
172.50.2.0/24
Sales Network
SwitchSwitch
E1
Switch
172.16.0.0/16
MainOffice Network
You will only be configuring the Headquarters router. Assume all other routers have been configured.
Because the other routers are not physically present, the Headquarters router will not show any
connectivity to these routers and their networks. Save your running-config to the startup-config often.
Configure your router based on the following requirements. Copy your running config to a floppy with
you name on it and hand it in when you are finished.
Router Configuration Requirement Pts/initials
Configure the router hostname to be HQ, with your initials at the end (ex: HQ-JRL) 3 pt/
Configure the enable secret password to be “class” 3 pt/
Configure the password to be “cisco” for log in from the console port. 3 pt/
Configure the password to be “cisco” for telnet into the router. 3 pt/
Configure IP addresses for all Headquarters router interfaces. If a host IP address is
not shown use any valid address for that subnet. 5 pt/
Add a description to each interface describing the link 3 pt/
Configure the Serial 1 interface with Frame Relay encapsulation 5 pt/
The RemoteOffice router has an IP address of 172.16.1.99. Assume Inverse-ARP is
disabled and add a statement that will allow Headquarters to be mapped to the
remote router’s IP address.
5 pt/
Between Headquarters and MainOffice, use PPP encapsulation with CHAP
authentication. Headquarters provides the clocking. 5 pt/
Configure a static hostname mapping for the MainOffice router, so the user can
“ping MainOffice” instead of using “ping 172.16.0.x”. 3 pt/
Configure the router to use the domain name server at 172.50.1.10 3 pt/
Add a message of “Authorized access only!” to display before log into the router. 3 pt/
Add IGRP routing to the 172.50.0.0 network with Autonomous System number10 3 pt/
Configure a static route from Headquarters to the 172.50.2.0 SalesOffice network 3 pt
Configure a static route from Headquarters to the 172.16.0.0 MainOffice network 3 pt/
Configure a default route so that all other traffic leaving the 172.50.0.0 network will
travel to the RemoteOffice router. 3 pt/
Add an access list to the Headquarters Router that will deny telnets from outside the
172.50.0.0 network, into the 172.50.1.0 subnet. All other traffic is permitted. 4 pt/
Points Scored: (items above are correct or not, no partial points) ______________
