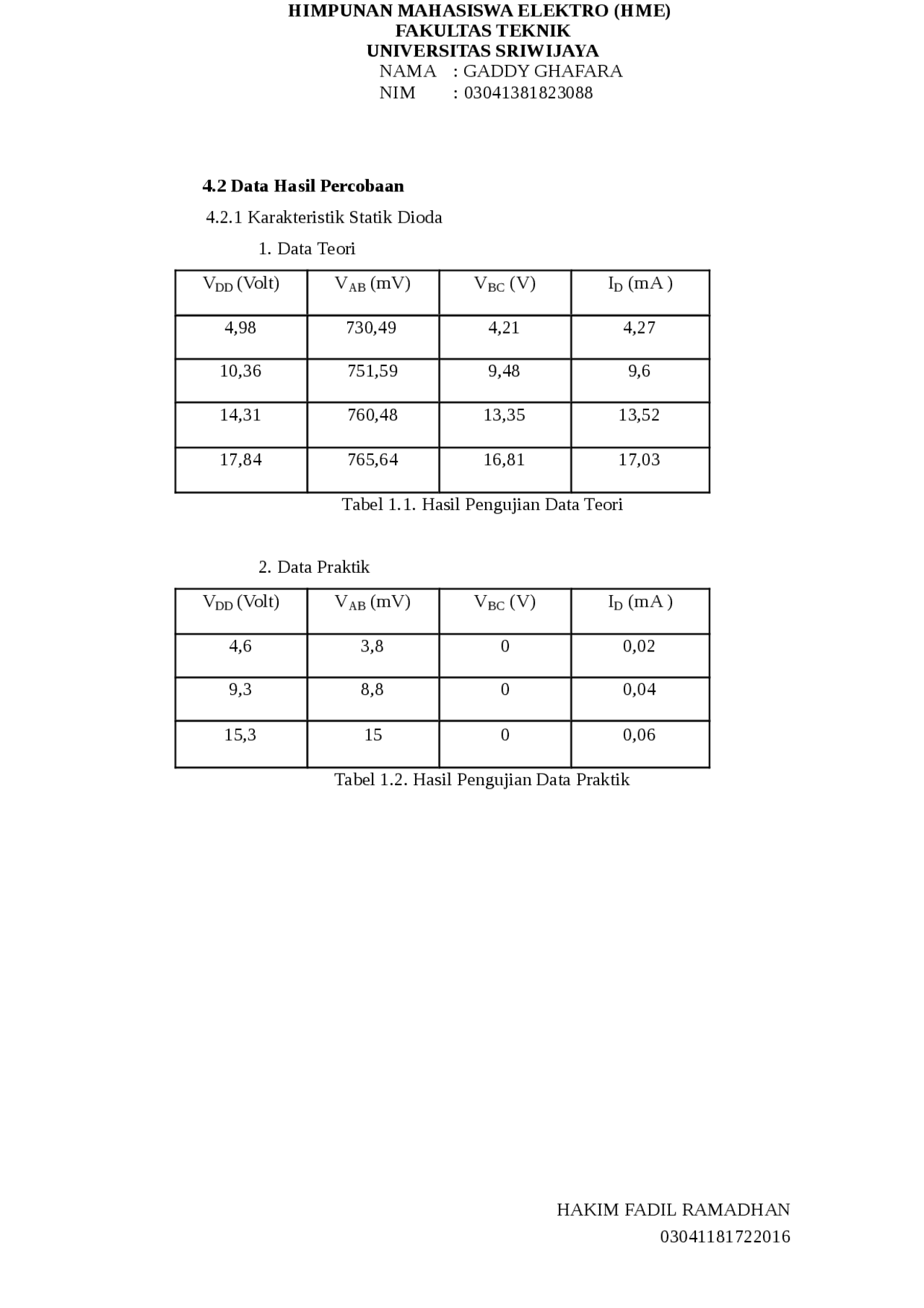

4.2 Data Hasil Percobaan
4.2.1 Karakteristik Statik Dioda
1. Data Teori
VDD (Volt) VAB (mV) VBC (V) ID (mA )
4,98 730,49 4,21 4,27
10,36 751,59 9,48 9,6
14,31 760,48 13,35 13,52
17,84 765,64 16,81 17,03
Tabel 1.1. Hasil Pengujian Data Teori
2. Data Praktik
VDD (Volt) VAB (mV) VBC (V) ID (mA )
4,6 3,8 0 0,02
9,3 8,8 0 0,04
15,3 15 0 0,06
Tabel 1.2. Hasil Pengujian Data Praktik
