bg1
Student ID:
Student Name:
Assoc.Prof.Dr. Mustafa AĞAOĞLU
CSE3055 – F’20 | Q#2
1/2
Marmara University – Faculty of Engineering – Department of Computer Engineering
Fall 2020 – CSE3055 Database Systems
Quiz #2
(26.11.2020 | Duration: 45 min)

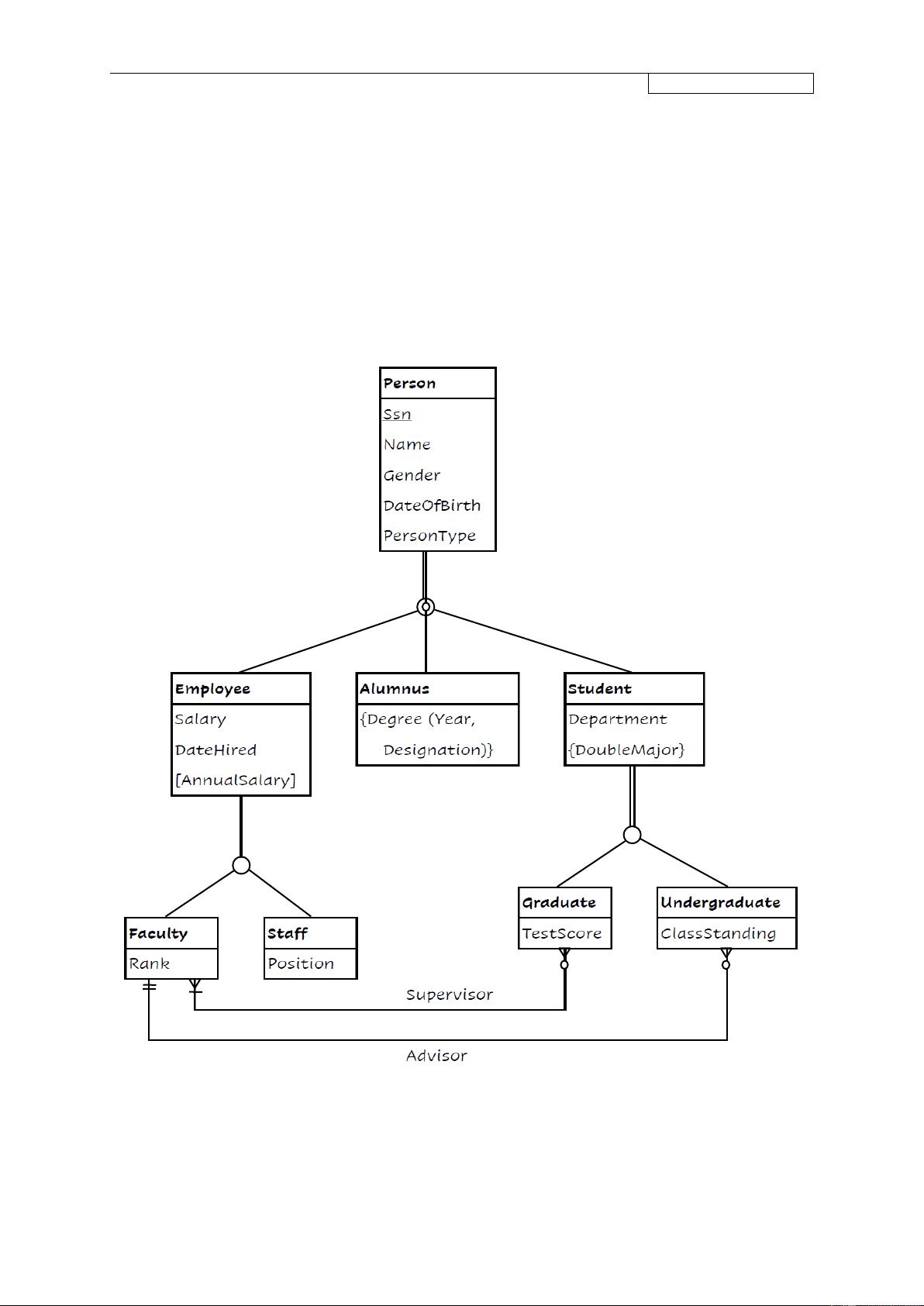

1) [40 pts] Map the following enhanced entity-relationship diagram into a relational database schema i.e.
tables and fields. Please state any assumptions that you have made. Do not forget to use arrows for
foreign key – primary key references. Also, note that the attribute PersonType is a subtype discriminator.
d
d
pf2

Partial preview of the text

Download CSE3055 Database SQL and more Assignments Database Management Systems (DBMS) in PDF only on Docsity!

Student ID: Student Name:

Assoc.Prof.Dr. Mustafa AĞAOĞLU CSE3^055 –^ F’^20 |^ Q# 1 / 2

Marmara University – Faculty of Engineering – Department of Computer Engineering

Fall 2020 – CSE3 0 55 Database Systems

Quiz

( 26 .1 1 .20 20 | Duration: 45 min)

1) [ 40 pts] Map the following enhanced entity-relationship diagram into a relational database schema i.e.

tables and fields. Please state any assumptions that you have made. Do not forget to use arrows for

foreign key – primary key references. Also, note that the attribute PersonType is a subtype discriminator.

d d

Student ID: Student Name:

Assoc.Prof.Dr. Mustafa AĞAOĞLU CSE3^055 –^ F’^20 |^ Q# 2 / 2

2) [ 60 pts] Consider the following database. Write SQL statements for the following queries using the

relational database below.

ALBUM

albumID title year singerID 1 Festival 2006 11 2 Patron 2009 11 3 Mançoloji 1999 6 5 Sakin Ol 1992 4 6 Turuncu 2001 4 7 Sade 2013 4 INSTRUMENT_SINGER singerID insID 1 1 1 3 2 4 3 1 3 8 4 1 4 5 4 6 4 7 11 1 11 3

SINGER

singerID name style 1 Ferhat Göçer Pop 2 Orhan Gencebay Arabesk 3 Candan Erçetin Pop 4 Sertab Erener Pop 5 Gülben Ergen Arabesk 6 Barış Manço Pop 7 Murat Boz Pop 8 Erol Büyükburç Pop 9 Demir Demirkan Rock 10 Zeynep Dizdar Pop 11 Kenan Doğulu Pop INSTRUMENT insID name 1 Piano 2 Drum kit 3 Zurna 4 Bağlama 5 Guitar 6 Harmonica 7 Trumpet 8 Violin

a) [12 pts] List all the attributes of albums which have a year greater than or equal to 2005.

b) [12 pts] List album title, album year, singer name and singer style of albums whose singer is “Sertab

Erener”. The order of the list should be descending according to album title.

c) [12 pts] List all the names of instruments played by the singers whose style is “Pop”. The list should

not display redundant records.

d) [12 pts] List the album ID, title, singer name and style of singers other than the ones who play an

instrument such that second character of the instrument’s name is “a”.

e) [12 pts] List the album title and the name of singers who play at least two different instruments.

Remove redundant records in the list.
