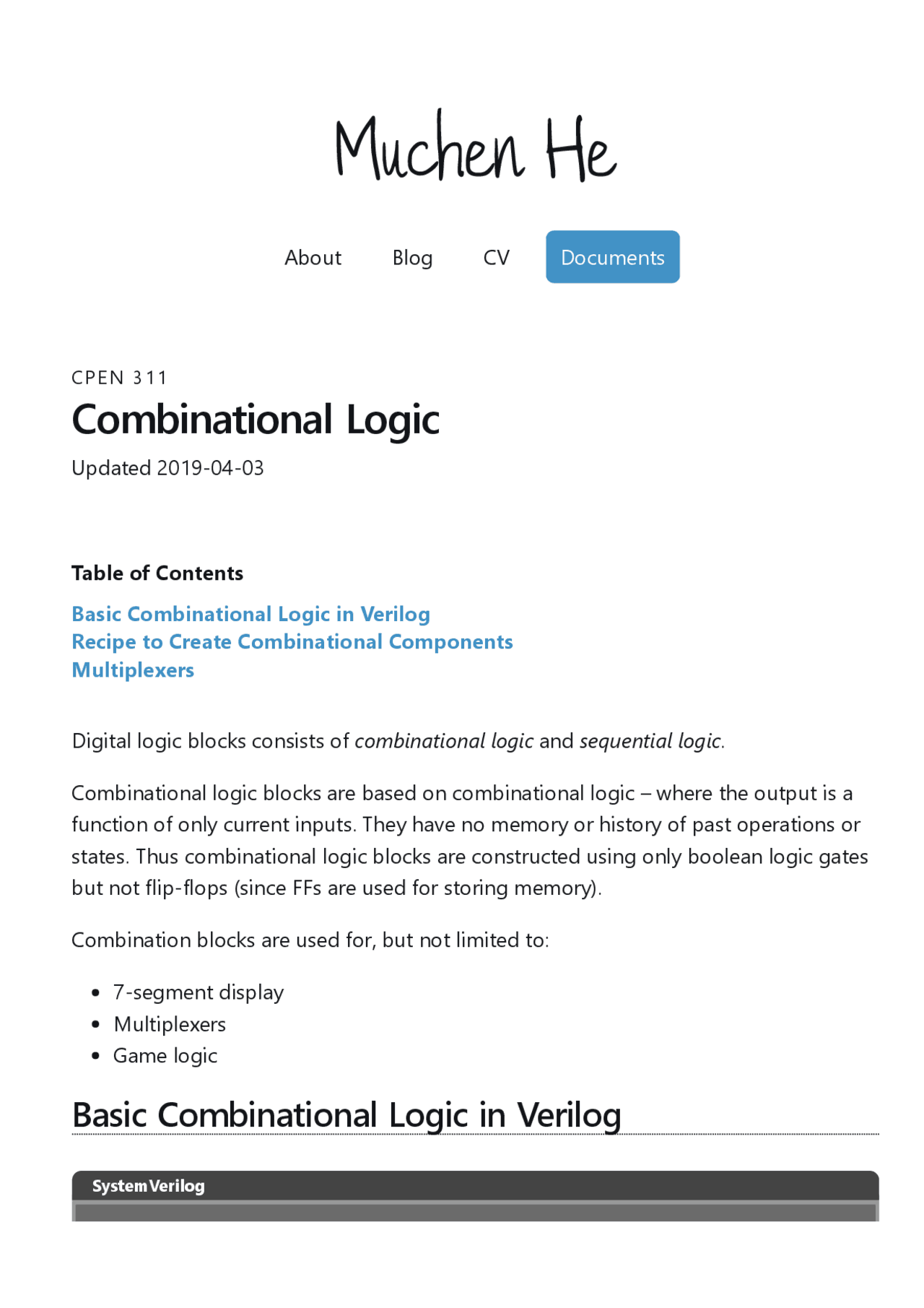

MuÓen He

C P E N 3 1 1

Combinational Logic

Updated 2019‐04‐

Table of Contents

Basic Combinational Logic in Verilog

Recipe to Create Combinational Components

Multiplexers

Digital logic blocks consists of combinational logic and sequential logic.

Combinational logic blocks are based on combinational logic – where the output is a

function of only current inputs. They have no memory or history of past operations or

states. Thus combinational logic blocks are constructed using only boolean logic gates

but not flip‐flops ﴾since FFs are used for storing memory﴿.

Combination blocks are used for, but not limited to:

7‐segment display

Multiplexers

Game logic

Basic Combinational Logic in Verilog

About Blog CV Documents

SystemVerilog

module MY_SYSTEM(A, B, C); input A, B; output C;

assign C = A ^ B; endmodule

Use wire if we want to connect intermediate signals:

module MY_SYSTEM_2(A, B, C); input A, B; output C;

wire S0, S1;

assign S0 = A & ~B; assign S1 = ~A & B; assign C = S1 | S0; endmodule

Recipe to Create Combinational Components

1. Determine the boolean equation for each output

2. Write the boolena equation as concurrent signal/wire assignments.

Since all logic is stateless, the outputs change based on the changes in the inputs. We

need to wrap these logic in an always block along with the sensitivity list.

always @(/* sensitivity list /) begin / combinational stements */ end

All input signals that are involved in the combinational logic are required to be in the

sensitivity list.

SystemVerilog

SystemVerilog

SystemVerilog

2'b01: Y = X[ 1 ]; 2'b10: Y = X[ 2 ]; 2'b11: Y = X[ 3 ]; endcase endmodule

Here, we set the output based on the control input SW.

Alternatively, we could also use if/else statements or other logic operators or

conditional statements such as?.

Note that in this example provided, we covered all permutations/cases of the

combinational logic in the always_comb block. If we don’t want to write out all the

cases either because it’s too much or too redundant, we could use default :

module mux(input [ 3 : 0 ] X, input [ 1 : 0 ] SW, output Y); always_comb case (SW) 2'b01: Y = X[ 1 ]; 2'b10: Y = X[ 2 ]; 2'b11: Y = X[ 3 ]; default: Y = X[ 0 ]; endcase endmodule

This means for any case not covered in the case statement, we will default Y = X[0].

Warning: failure to cover all cases could lead to the synthesizer interpreting the verilog

code as logic with memory, and make inferred latches. This is not the desired

hardware, which is not good.
