TopBot: Automated Network Topology Detection
WithaMobileRobot
Paul Blaer and Peter K. Allen
Department of Computer Science, Columbia University, New York, NY 10027
f
pblaer,allen
g
@cs.columbia.edu
Abstract We have demonstrated that a properly-
equipped mobile robot can easily construct a detailed map
of the wireless coverage of an urban environment. The Au-
tonomous Vehicle for Exploration and Navigation of Urban
Environments (AVENUE) mobile robot was successfully used
to generate such maps in both manual and autonomous
modes of operation. The resulting database contained a
wealth of information for many different positions in the
region, with a list of all access points viewable from each
location together with a quality measure (the signal-to-noise
ratio) of every detected signal. At a later time, the AVENUE
system effectively used the data in this map to determine the
approximate position of the robot as it traveled through the
urban area.
I. INTRODUCTION
In the process of exploring urban environments, a mo-
bile robot passes through areas rich in wireless networks.
Signals from the networks’ access points can be collected
and analyzed by the robot, with the acquired information
incorporated into the robot’s navigational system. During
an initial exploratory phase, the robot can construct a
detailed signal map of the geographical region. At a later
time, the robot can use this map to assist in localization
and navigation. The map can also identify deficiencies in
the signal coverage of the area and help in the design of
a better network infrastructure. The Autonomous Vehicle
for Exploration and Navigation of Urban Environments,
AVENUE [6], has been adapted to perform these wireless
mapping tasks.
AVENUE is a mobile robot (see Fig. 1) whose overall
goal is to automate the site modeling process which
includes building geometrically accurate and photomet-
rically correct models of complex outdoor urban envi-
ronments. In particular, the AVENUE system can au-
tonomously model a targeted building. The system plans
a path to a desired viewpoint, navigates the mobile robot
to that viewpoint, acquires images and three-dimensional
range scans of the building, and then plans for the next
viewpoint. The system then fuses all of the collected data
into an accurate, texture-mapped, three-dimensional model
of the targeted building.
In this paper, we describe how the AVENUE system has
been extended so that it can autonomouslymap an outdoor
This work was supported in part by NSF grant ANI-00-99184.
region by utilizing signals from a wireless network. With
the addition of new software modules to monitor and an-
alyze wireless transmissions used in conjunction with the
existing path planning and navigation software, AVENUE
has been able to map the coverage of the numerous access
points installed on the Columbia University campus. It has
then been able to use this map for subsequent localiza-
tion and navigation purposes, which is especially useful
at times when GPS and odometry are not available or
reliable.
Our paper is organized as follows. In the next section,
we indicate previous work that is related to our project.
We then describe in section III our equipment and the
environment in which we worked. In section IV, we
detail the process of building the wireless-signal maps of
the northern part of Columbia’s campus and we present
a representative map of the locations at which wireless
signals were measured. Some statistics associated with the
viewable access points are also given. We then present
and discuss in section V the implementation of one of the
uses of the signal map, localization of the mobile robot. In
the concluding remarks of section VI, we summarize our
results and discuss additional possible uses of the signal
map for the AVENUE and other projects.
II. RELATED WORK
The work presented in this paper is part of the AVENUE
project for automated modeling of an outdoor urban
environment by a mobile robot ([1], [6]).
The use of existing 802.11b wireless network signals
as a means of locating a user was originally presented in
Microsoft Research’s RADAR project [2]. The Microsoft
group collected the signal data manually in an indoor
environment and then used this information for estimating
the position of a user at a later time. Other groups have
also made use of manually-obtained 802.11b signals for
indoor localization [8]. We have extended the work of
these groups by having our mobile robot autonomously
construct the database, while covering a much larger
outdoor urban environment.
There have also been a number of systems [9] based
on the characteristics of cellular signals and designed for
geolocating cellular telephone users in outdoor environ-
ments. In addition, there have been attempts to use RF
pf3
pf4
pf5

Partial preview of the text

Download Automated Network Topology Detection with a Mobile Robot and more Lecture notes Network Design in PDF only on Docsity!

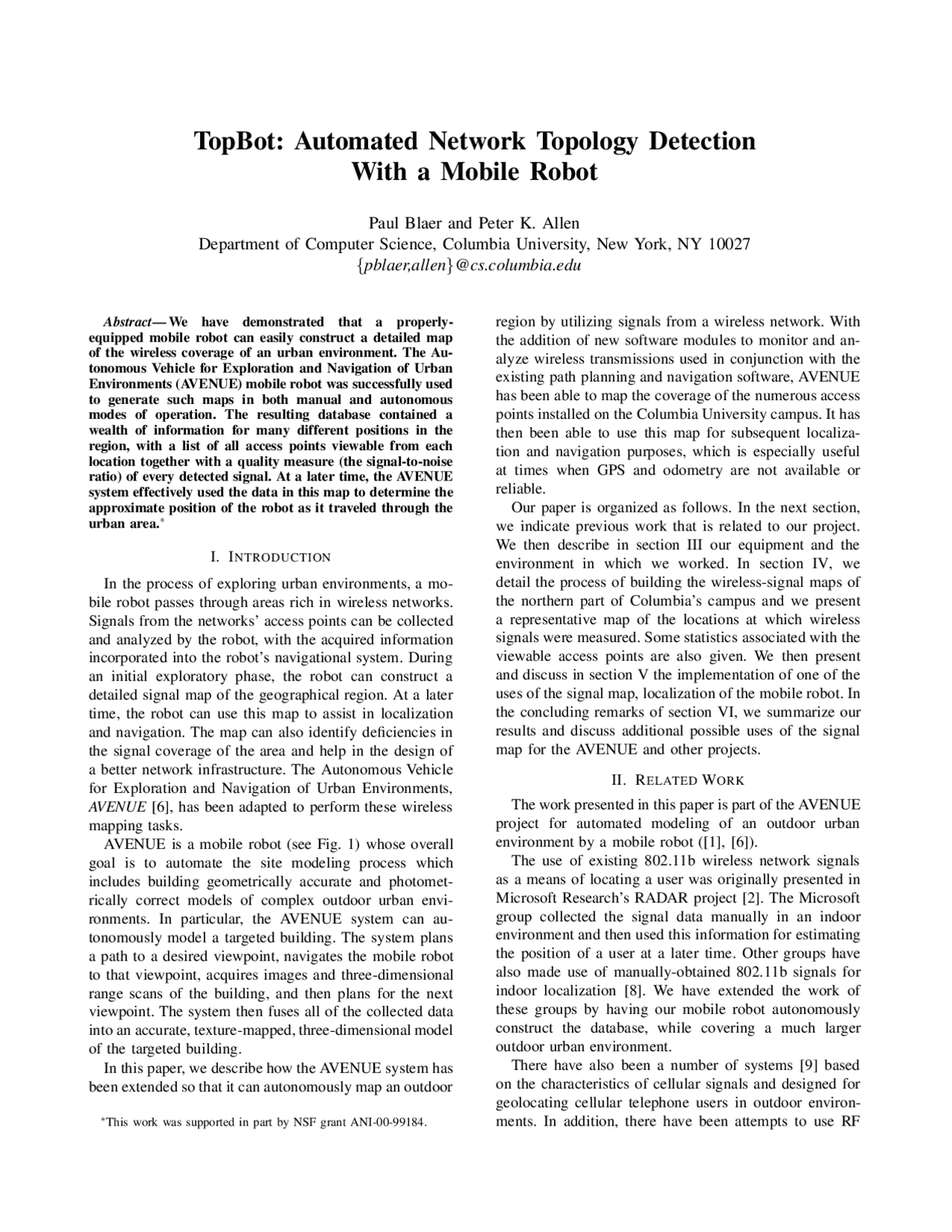

TopBot: Automated Network Topology Detection

With a Mobile Robot

Paul Blaer and Peter K. Allen

Department of Computer Science, Columbia University, New York, NY 10027

f pblaer,allen g @cs.columbia.edu

Abstract — We have demonstrated that a properly- equipped mobile robot can easily construct a detailed map of the wireless coverage of an urban environment. The Au- tonomous Vehicle for Exploration and Navigation of Urban Environments (AVENUE) mobile robot was successfully used to generate such maps in both manual and autonomous modes of operation. The resulting database contained a wealth of information for many different positions in the region, with a list of all access points viewable from each location together with a quality measure (the signal-to-noise ratio) of every detected signal. At a later time, the AVENUE system effectively used the data in this map to determine the approximate position of the robot as it traveled through the urban area.

I. I NTRODUCTION In the process of exploring urban environments, a mo- bile robot passes through areas rich in wireless networks. Signals from the networks’ access points can be collected and analyzed by the robot, with the acquired information incorporated into the robot’s navigational system. During an initial exploratory phase, the robot can construct a detailed signal map of the geographical region. At a later time, the robot can use this map to assist in localization and navigation. The map can also identify deficiencies in the signal coverage of the area and help in the design of a better network infrastructure. The Autonomous Vehicle for Exploration and Navigation of Urban Environments, AVENUE [6], has been adapted to perform these wireless mapping tasks. AVENUE is a mobile robot (see Fig. 1) whose overall goal is to automate the site modeling process which includes building geometrically accurate and photomet- rically correct models of complex outdoor urban envi- ronments. In particular, the AVENUE system can au- tonomously model a targeted building. The system plans a path to a desired viewpoint, navigates the mobile robot to that viewpoint, acquires images and three-dimensional range scans of the building, and then plans for the next viewpoint. The system then fuses all of the collected data into an accurate, texture-mapped, three-dimensional model of the targeted building. In this paper, we describe how the AVENUE system has been extended so that it can autonomously map an outdoor

 This work was supported in part by NSF grant ANI-00-99184.

region by utilizing signals from a wireless network. With the addition of new software modules to monitor and an- alyze wireless transmissions used in conjunction with the existing path planning and navigation software, AVENUE has been able to map the coverage of the numerous access points installed on the Columbia University campus. It has then been able to use this map for subsequent localiza- tion and navigation purposes, which is especially useful at times when GPS and odometry are not available or reliable. Our paper is organized as follows. In the next section, we indicate previous work that is related to our project. We then describe in section III our equipment and the environment in which we worked. In section IV, we detail the process of building the wireless-signal maps of the northern part of Columbia’s campus and we present a representative map of the locations at which wireless signals were measured. Some statistics associated with the viewable access points are also given. We then present and discuss in section V the implementation of one of the uses of the signal map, localization of the mobile robot. In the concluding remarks of section VI, we summarize our results and discuss additional possible uses of the signal map for the AVENUE and other projects.

II. R ELATED W ORK The work presented in this paper is part of the AVENUE project for automated modeling of an outdoor urban environment by a mobile robot ([1], [6]). The use of existing 802.11b wireless network signals as a means of locating a user was originally presented in Microsoft Research’s RADAR project [2]. The Microsoft group collected the signal data manually in an indoor environment and then used this information for estimating the position of a user at a later time. Other groups have also made use of manually-obtained 802.11b signals for indoor localization [8]. We have extended the work of these groups by having our mobile robot autonomously construct the database, while covering a much larger outdoor urban environment. There have also been a number of systems [9] based on the characteristics of cellular signals and designed for geolocating cellular telephone users in outdoor environ- ments. In addition, there have been attempts to use RF

based networks, as in the Daedalus project [7], to localize a user in an outdoor area.

III. T HE P LATFORM AND T HE E NVIRONMENT Our mobile robot, AVENUE, has as its base unit the ATRV-2 model manufactured by Real World Interfaces, now part of iRobot, (see Fig. 1). The base unit has an onboard computer, odometry from wheel encoders, and a set of sonar units located around the perimeter of the robot. In addition to these base features, we have added additional sensors including a differential GPS unit, a laser range scanner, a camera mounted on a pan-tilt unit, an omnidirectional camera, a digital compass, and two 802.11b wireless network cards. Communication with the networks’ base stations is accomplished through an omnidirectional antenna which is mounted on the highest point of the robot and which is connected to the pcmcia wireless network card in the onboard computer. Software located on the robot’s computer polls this wireless card and returns a list of access points that are in range together with a quality measure of the signals received from each base station. We use signal-to-noise ratios as our quality indicators. At the same time a wireless measurement is taken, we take readings from the robot’s GPS receiver and odometry in order to tag the measurement with an accurate location. All of this information is then stored in a database and, at the same time, transmitted to the robot’s operator. The environment in which we conducted the exper- iments for our project was the Morningside Heights Campus of Columbia University (see Fig. 1). There are numerous wireless base stations installed throughout the campus for general use by the university community. This extensive wireless network provided an excellent setting in which to test our mapping system.

IV. C ONSTRUCTING THE M AP

A. Building the Detailed Wireless Network Map

As the AVENUE robot travels through the campus environment, a program running on the onboard computer accesses the robot’s primary wireless Ethernet card and returns a vector of information. That information includes a list of all access points from which the robot is receiving any kind of signal. Each of these access points has an identifying hardware address which we use as a key into the data. We also tag each access point with the signal- to-noise ratio which represents the quality of the signal from that particular base station. (The base station with the best signal-to-noise ratio is generally chosen by the hardware’s drivers as the one with which to communicate.) We also record which wireless access point is dominant (with the largest signal-to-noise ratio) for a particular location. Later, we reorganize all of our data into a set of arrays in which each array represents measurements

for which a single access point is dominant. This helps to prune subsequent searches of the data. Once the robot has recorded the information about the access points currently in sight, it proceeds to tag them with the robot’s exact position at which these read- ings were taken. This is done by querying the onboard navigation software, which fuses together a number of inputs in order to determine as accurately as possible a location for the robot within the coordinate frame of the campus. The coordinates can be easily transformed into latitude and longitude; however, it is more convenient to use local coordinates. The inputs include those from an onboard GPS receiver, which is augmented by a differ- ential receiver mounted on one of the tallest buildings on campus. Under perfect conditions, differential GPS will provide centimeter accuracy. However, under actual operating conditions, GPS can be much less accurate, depending on such conditions as the number of buildings in the way, satellite position, and time of day. The GPS input is then fused with information from the robot’s onboard odometry, which is based on wheel encoders situated on each of the robot’s motors. Finally, a precise location can also be calculated by matching a camera image of buildings close to the robot with the images in a previously collected database [5]. The combination of these three localization inputs (GPS, odometry, and fine-grained vision) provides a best estimate of the robot’s position. This estimate, along with a time stamp, is used to tag a single reading from the robot’s wireless card. The vector of these data is then stored in an internal data structure as an array. The robot gathers and records all of the information described above at a rate of 1 location’s set of readings per second. As the robot drives through the region to be measured, it automatically builds up the map. The information is stored and can be transmitted back to the operator’s laptop where it can be visually displayed and then overlaid with a diagram of the region being explored.

B. Autonomous Navigation of the Robot Our robot is currently equipped with a navigation sys- tem that includes an existing two-dimensional precision diagram of the operating environment. In our current project, this is the northern part of the Columbia Univer- sity campus. The diagram indicates all of the free space in which the robot can safely operate. The robot also has a built-in path planner for computing safe paths between any two arbitrary points on the diagram. To collect data for the signal map, the robot follows the following procedure. First, it marks out a grid of points which are evenly spaced every 5 feet throughout the free space in the diagram. Then, from its starting point, it chooses the nearest point on the grid and plans an optimal safe path to it. Using the same localization software that was used

Fig. 2. A map of the locations at which wireless signals were measured in a region of the Columbia campus. The subregions A, B, C, D, E, and F extend in the north-south direction for approximately 220 feet and are each about 80 feet wide.

Subregion: A B C D E F

of locations: 379 581 567 131 163 448

% of locations with: N = 1 96% 65% 15% 0% 3% 49% N = 2 3% 25% 56% 3% 1% 48% N = 3 1% 9% 25% 91% 64% 3% N  4 0% 0% 4% 6% 32% 0% % of locations with: S = very high 0% 2% 66% 72% 82% 42% S = high 3% 72% 25% 16% 13% 3% S = medium 36% 16% 5% 8% 3% 10% S = low 61% 10% 4% 4% 2% 46% TABLE I S TATISTICS FOR EACH SUBREGION OF THE MAP IN^ F^ IG^. 2. T^ HE TABLE INDICATES THE NUMBER OF DATA POINT LOCATIONS IN EACH SUBREGION , THE PERCENTAGE OF THESE LOCATIONS WITH PRECISELY N VIEWABLE ACCESS POINTS , AND THE PERCENTAGE OF THESE LOCATIONS FOR WHICH THE DOMINANT ACCESS POINT HAS STRENGTH S. (T HE FOUR DIFFERENT STRENGTH CATEGORIES REFER TO THE SIGNAL - TO - NOISE RATIO OF WHICHEVER ACCESS POINT IS DOMINANT.)

each of these subregions are given in table I. One should note that subregions C, D, and E have many locations for which the dominant access point has a very high signal-to-noise ratio. One should also note that these same three subregions have a large number of locations which receive discernible signals simultaneously from three or more access points. Determining the location of the robot at later times from signal measurements alone proved to be most successful in these three particular subregions.

The second experiment was done in autonomous mode

Fig. 3. The map shows the grid of 11 points that the robot used to survey autonomously a small area of campus. The paths followed between these points is also shown.

and made use of our path planning and navigation soft- ware. We now chose to work in a small subregion of the area explored in the first experiment. In constructing the signal map of the second experiment, the robot chose a grid of 11 points (see Fig. 3) which were evenly spaced approximately every 5 feet throughout the free space. The robot then planned its optimal safe path connecting these points. These grid points were discerned in the resulting

map as regions with a higher density of readings, because the robot slowed down as it approached each of its target grid points. The actual paths followed by the robot may not seem like the most obvious ones, because the robot is traveling along the edges of the Voronoi diagram which has been computed for the nearby obstacles. These paths result from the robot’s attempt to stay as far away from all obstacles as is possible.

V. L OCALIZATION

A. Localization Method

After a comprehensive signal map of a region has been constructed, it can be used later to determine the location of a mobile robot when GPS and odometry are not available. In the mapping stage of our project, the robot made a detailed set of measurements of the wireless signal strengths at many different points throughout the environment and stored all of these data. When the robot is in this region at a later time, it can take readings of the wireless signals available, compare these readings with its stored database of signals, and thereby determine its approximate location. We have applied this localization method to the AV- ENUE robot. To determine our robot’s unknown location somewhere in the northern part of the Columbia campus, we took a reading from the robot’s wireless card to obtain a vector of visible access points and their corresponding signal strengths. We then compared this vector to the vec- tors in our large database and tried to find the best match. To minimize the amount of search time, we made the initial assumption that the current dominant access point (the one with which the wireless card was communicating at that moment) was the same as the dominant access point of the most closely matching vector in the database. This assumption substantially reduced the number of vectors needed for comparison. To compare vectors in a meaningful way and decide which vector in the database was closest to the vector from an unknown location, we needed to define a suitable metric. In our work, we used a metric similar to the one used in the Microsoft RADAR project. The metric distance between two vectors was simply taken as the sum of the absolute values of the differences between signal strengths of corresponding access points. If there were access points that appeared in one vector but not in the other, we assumed that the other vector had that access point in its list but with a strength of zero. We stepped through each of the database vectors that had the same dominant access point as the vector from the unknown location and calculated the metric distance between each pair of database-unknown vectors. We then found the minimum distance and identified in this database subset the nearest neighbor of the unknown. If this minimum distance was within a certain specified range, we concluded that the

location of the nearest neighbor gave an estimate of the robot’s position. If this minimum distance was outside the specified range, we considered the similarity between this nearest neighbor and the unknown not to be sufficiently good. We then stepped through the entire database and computed all metric differences in order to find the global nearest neighbor and used that location as the estimate for the robot’s position.

B. Results of Localization To test our localization algorithm, we drove the robot through the northern part of the campus manually for a second time. Now, instead of building the signal map, we took single samples from the wireless card at various positions regarded as unknown. To check our final results, we also recorded the robot’s actual location at each of these positions. We then applied our localization algorithm using the previously-constructed signal map to find the best database matches for the single samples. The signal map constructed in manual mode was actually used for this test because it spanned a much larger region of campus than did the autonomous-mode map. Our resulting estimates for the robot’s location varied in accuracy depending on the number of access points that were visible in a given location. In regions with three or more access points in view (such as subregions C, D, and E in Fig. 2), the localization was generally reliable enough to estimate the robot’s position to within 25 feet of its actual position. This position estimate was necessarily a position at which we had previously recorded a database vector; however, this was not a significant drawback because of the high density of database loca- tions. In regions with fewer than 3 access points visible, localization was much less reliable and could only identify the general region in which the robot was located by using the database region with the same dominant access point.

VI. S UMMARY AND F UTURE W ORK We have demonstrated that a properly-equipped mobile robot can easily construct a detailed map of the wireless coverage of an urban environment. The AVENUE mobile robot has successfully been used to generate such maps in both manual and autonomous modes of operation. The resulting database contains a wealth of information for many different positions in the region, with a list of all access points viewable from each location together with a quality measure of every detected signal. This signal map was subsequently used by the AV- ENUE robot to determine its location at later times. This method of localization had reasonable accuracy only when many access points were viewable from a given location. However, even in areas in which only one or two wireless access points were visible, we were still able to give a coarse estimate of the robot’s position by using knowledge
