ASE 362: homework 4 structural analysis, Study notes of Structural Analysis

Middle East Technical UniversityStructural Analysis

sdfkhsdlfhskjhskjghksjdhlvkjsnzdvş

Typology: Study notes

2022/2023

Uploaded on 05/04/2023

fidan-doruk
fidan-doruk 🇹🇷

1 document

1 / 12

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download ASE 362: homework 4 structural analysis and more Study notes Structural Analysis in PDF only on Docsity!

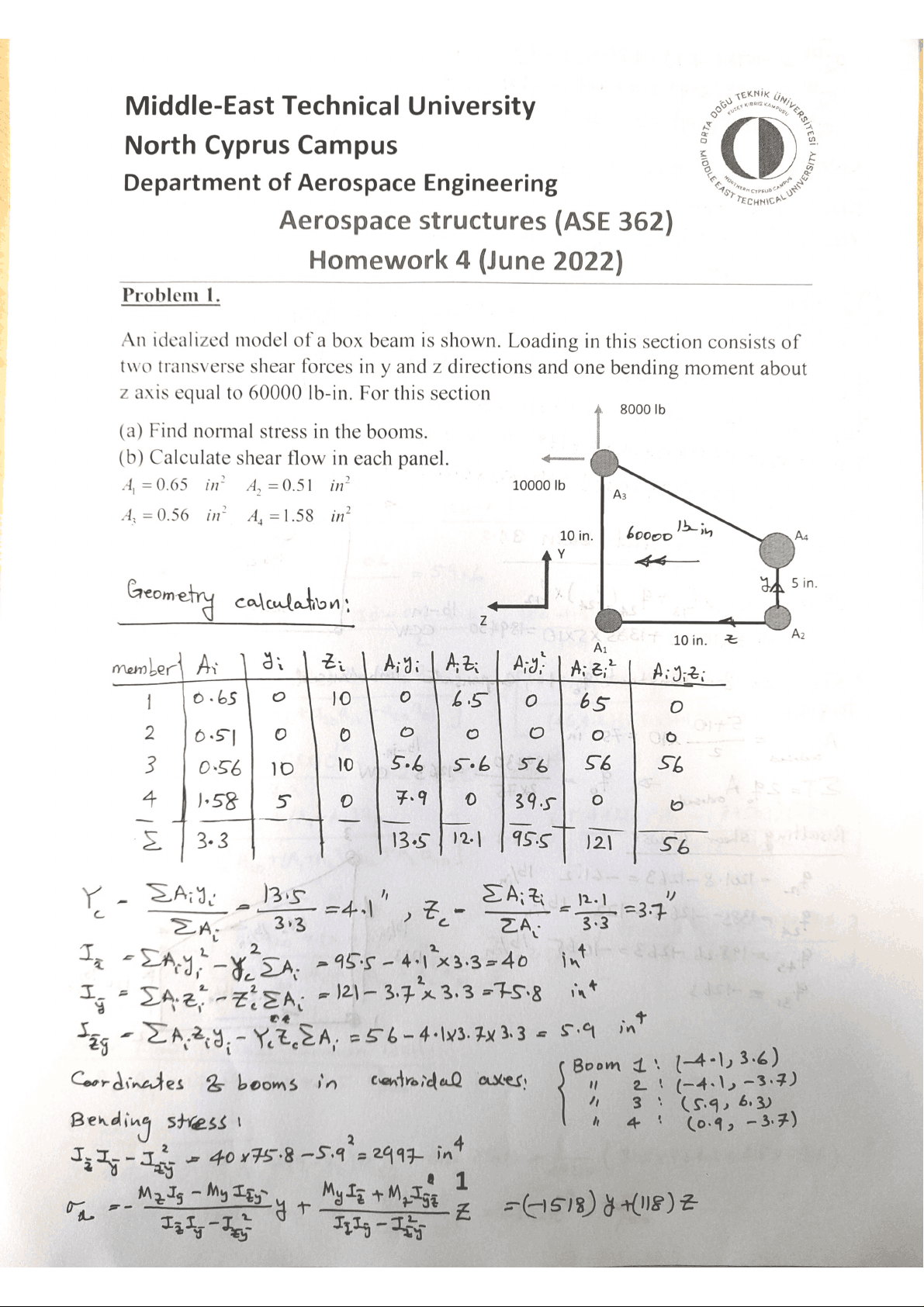

Middle-East Technical University 5 North Cyprus Campus Department of Aerospace Engineering Aerospace structures (ASE 362) Homework 4 (June 2022) 00" ORD, ao Problem 1. An idealized model of a box beam is shown. Loading in this section consists of two transverse shear forces in y and z directions and one bending moment about Z axis equal to 60000 Ib-in. For this section 8000 Ib (a) Find normal stress in the booms. | (b) Calculate shear flow in each panel. A=0.65 in A, =0.51 i? 10000 Ib Gee A, =0.56 in? |, =1.58 in? 10 in. Geometry caletation: we
